Name: Dakota Digital MLX-8414 - 2014-up Harley Davidson Touring models
SKU: 240905

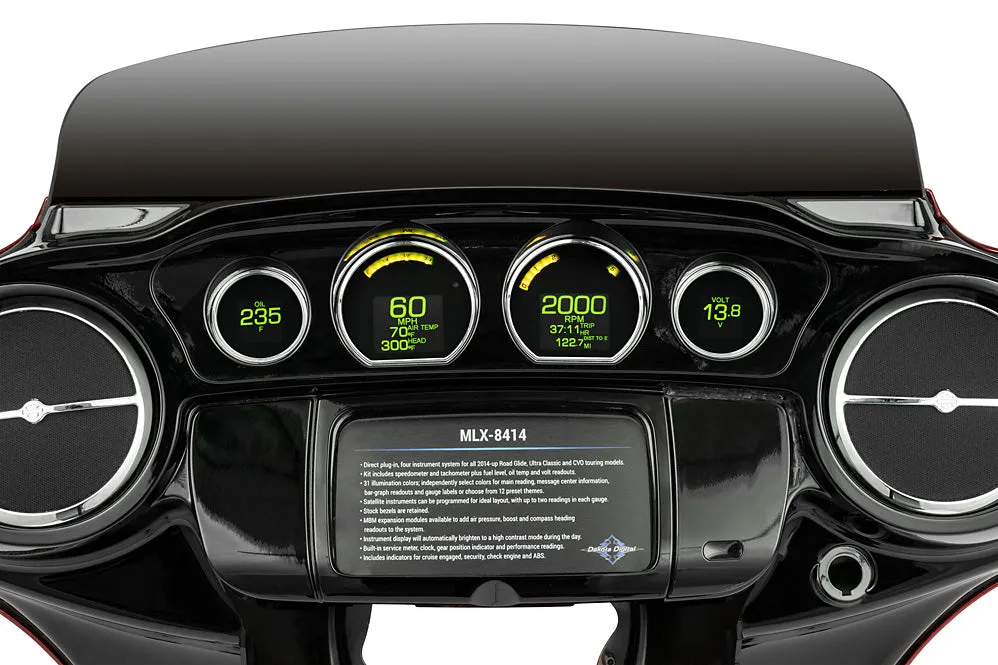

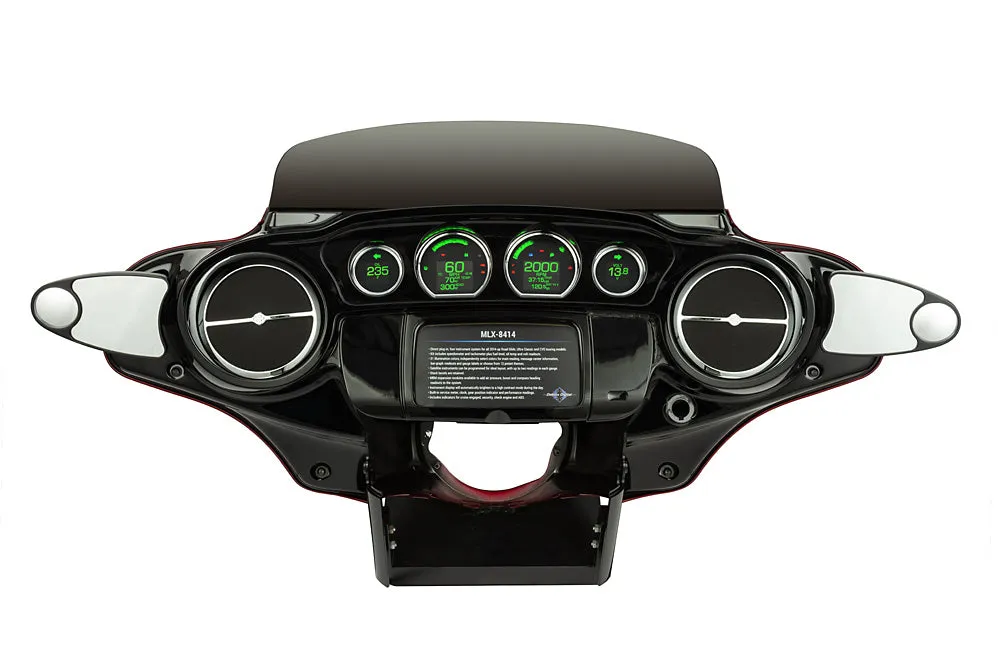

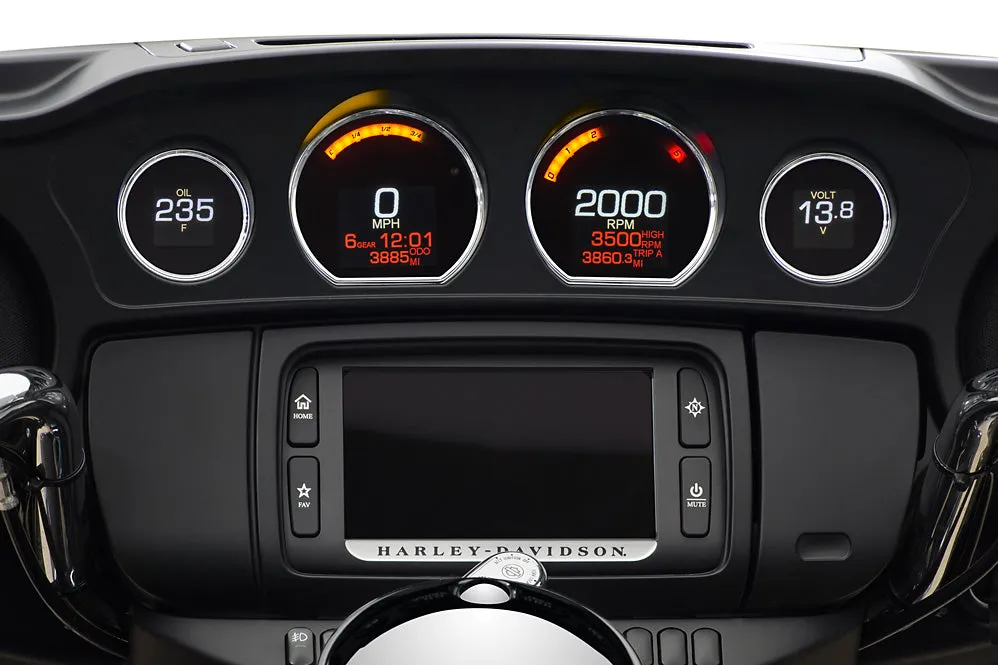

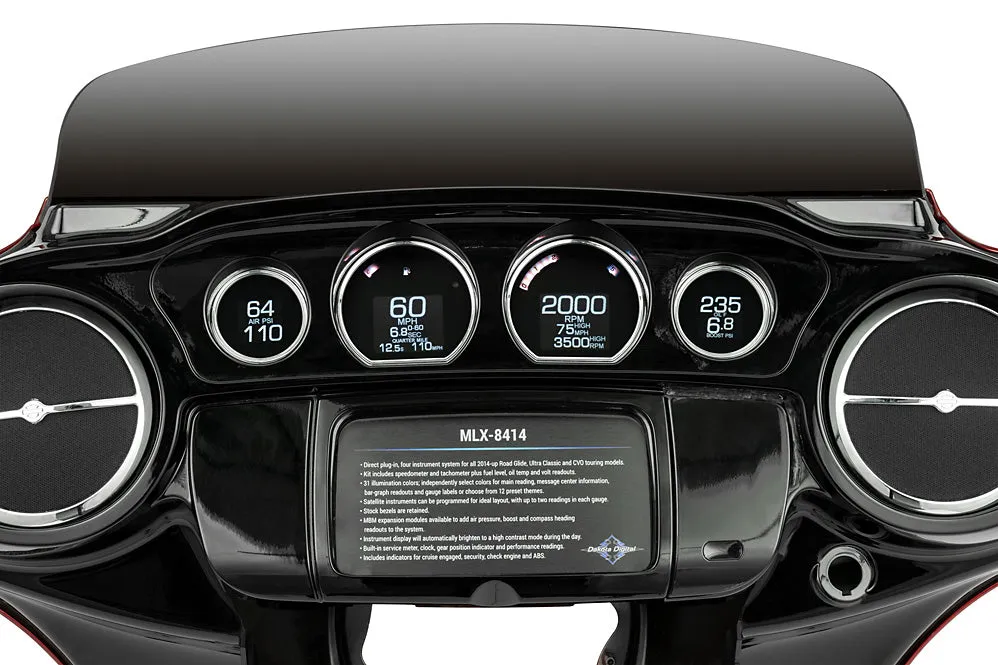

Direct plug-in digital instrumentation system for all *2014 through 2023 Harley Davidson Street Glide, Road Glide, Ultra Classic, Tri-Glide, and CVO touring models.

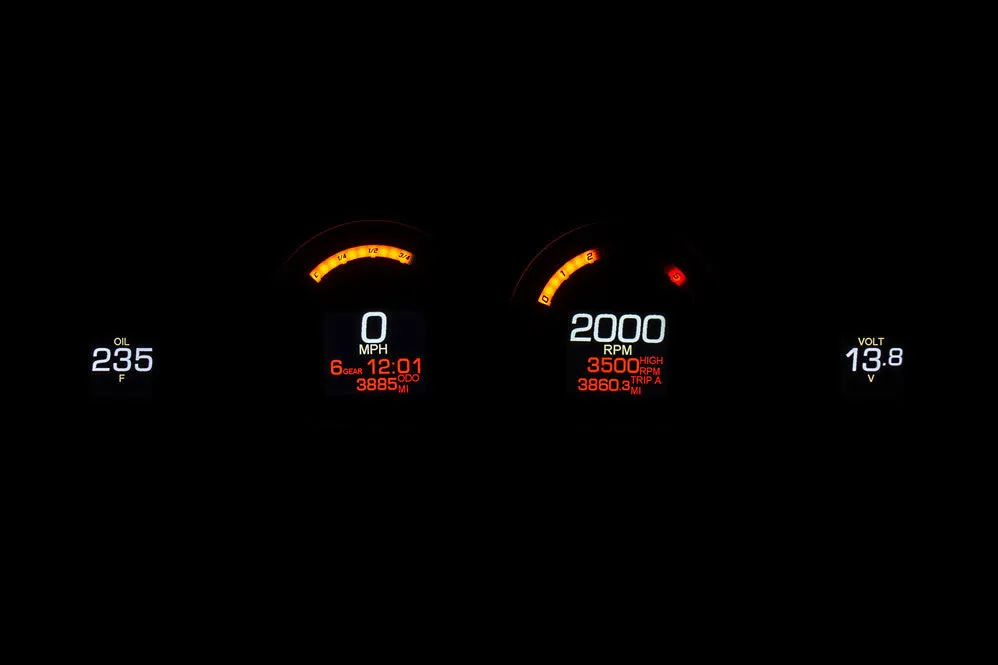

Dig into the 31 illumination colors; independently select colors for the main gauge reading, message center information, bar-graph readouts, and gauge labels, or choose from 12 preset themes! The message centers below the main speed and tach readings offer plenty of information and can be configured to show just what the rider wants to see. The gauge display automatically dims for comfortable nighttime riding and brightens to a high contrast mode for excellent visibility, even in direct sunlight.

The speedometer can be calibrated for custom-gearing situations and allows the user to select MPH or km/H in the setup menu.

The two smaller gauges can be programmed by the rider for their ideal layout; out-of-the-box options include oil temperature, fuel level, and voltage, while boost, air suspension pressure, and compass heading can be had with the appropriate MBM upgrade modules!

To top it all off, the MLX-8414 features Bluetooth technology for the available mobile app for both Android and Apple iOS devices. Continuously access the setup and customization preferences with your smartphone or tablet!

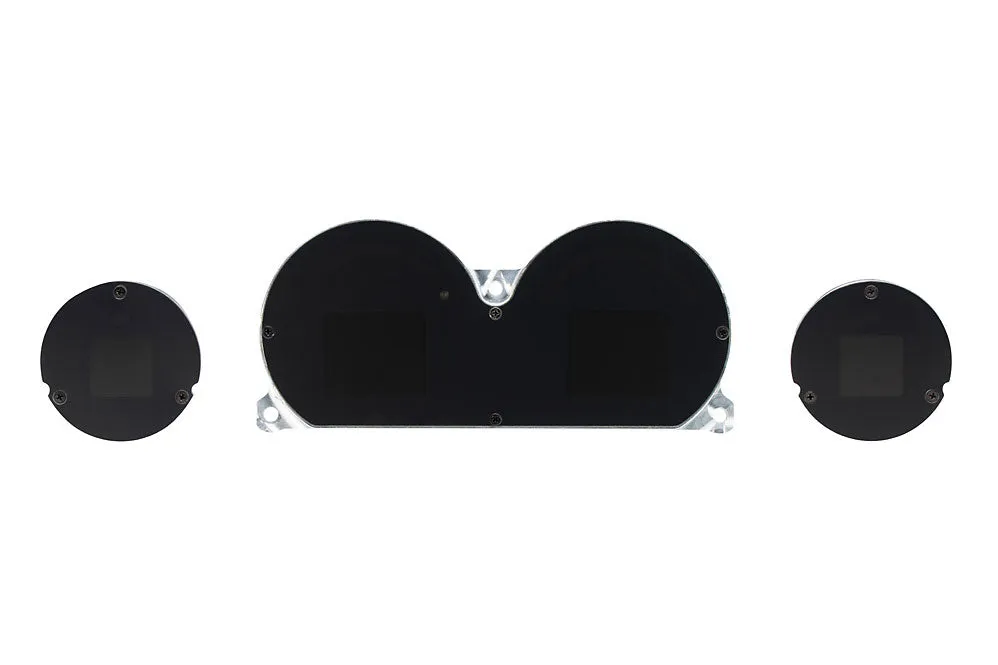

MLX-8414 utilizes the stock chrome trim rings from the OEM gauges.

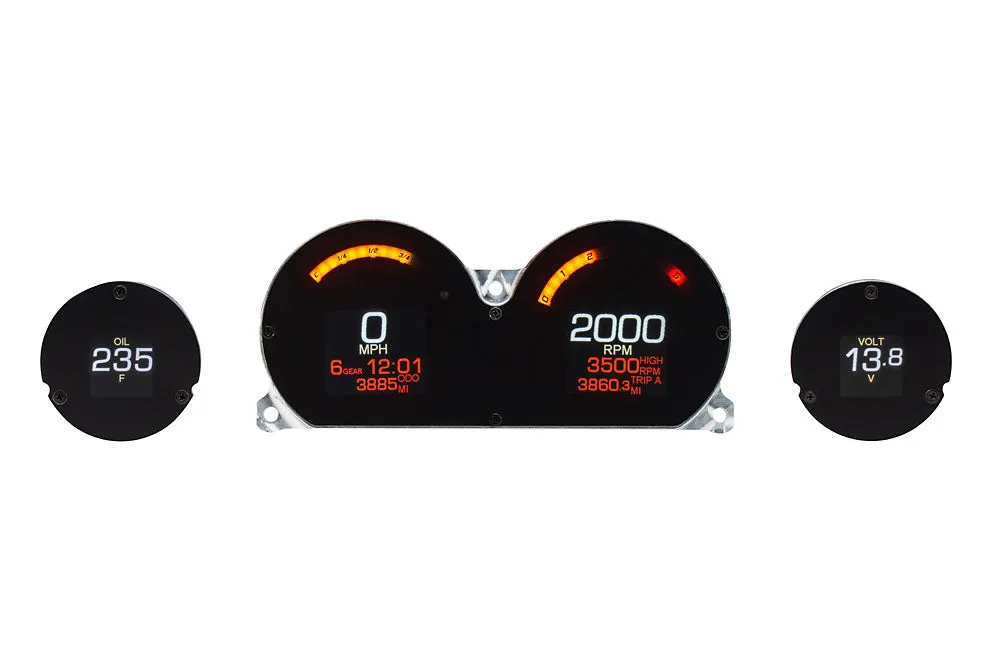

- 250MPH (400km/h) Speedometer
- Tachometer with additional bar graph that wraps around the crown of the gauge
- Oil Temperature (sender included)
- Volts
- Fuel Level wraps around the crown of the Speedometer
- Gear Position
- Clock
- Odometer
- A & B Trip meters
- Service Meter (miles until next service)
- Tire pressure monitoring on factory-equipped models
- Performance Meters
- - 1/4 mile Speed and Time
- - 0-60 time
- - High Speed and RPM recall
- Indicators:
- - Turn Signals, High Beam, Cruise Control on/engaged, Check Engine, Security, ABS with Reverse and Parking Brake available for Tri-Glide applications
- - RDRS - Reflex Defensive Rider System indicators for Traction Control, Rain Mode, and VHC Vehicle Hold Control (formerly Hill Assist).

* The MLX-8414 is designed to work with models that include a fairing from the factory. Add-on fairings on other bike models do not allow compatibility.

Dakota Digital Instrument systems are shipped from the factory with "0" miles on the odometer. The odometer can be set by the installer multiple times within the first 100 miles of driving. In the event of an error or oversight, the odometer reading can be corrected at the factory for a charge of $20 (plus shipping). Please contact Dakota Digital to arrange this service.

FITMENT

Electra Glide Standard FLHT 2019, 2020

Electra Glide Ultra Classic FLHTCU/I 2014-2019

Electra Glide Ultra Classic Low FLHTCUL 2015, 2016

Electra Glide Ultra Limited FLHTK 2014-2020

Electra Glide Ultra Limited Low FLHTKL 2015-2019

Road Glide FLTRX 2015-2023

Road Glide Limited FLTRK 2020-2023

Road Glide Special FLTRXS 2015-2023

Road Glide ST FLTRXST 2022, 2023

Road Glide Ultra FLTRU 2016-2019

Road King FLHR/I 2014-2022
