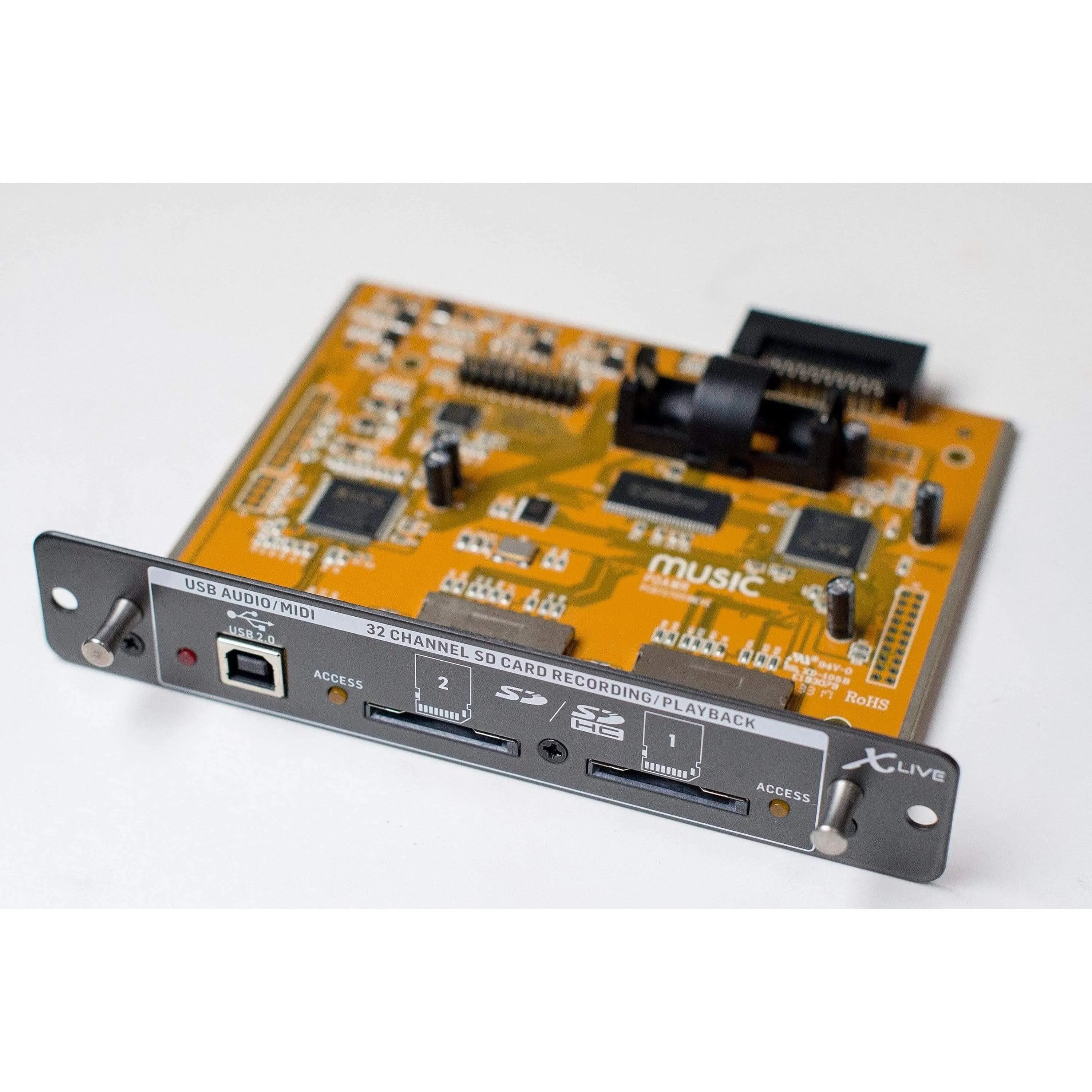

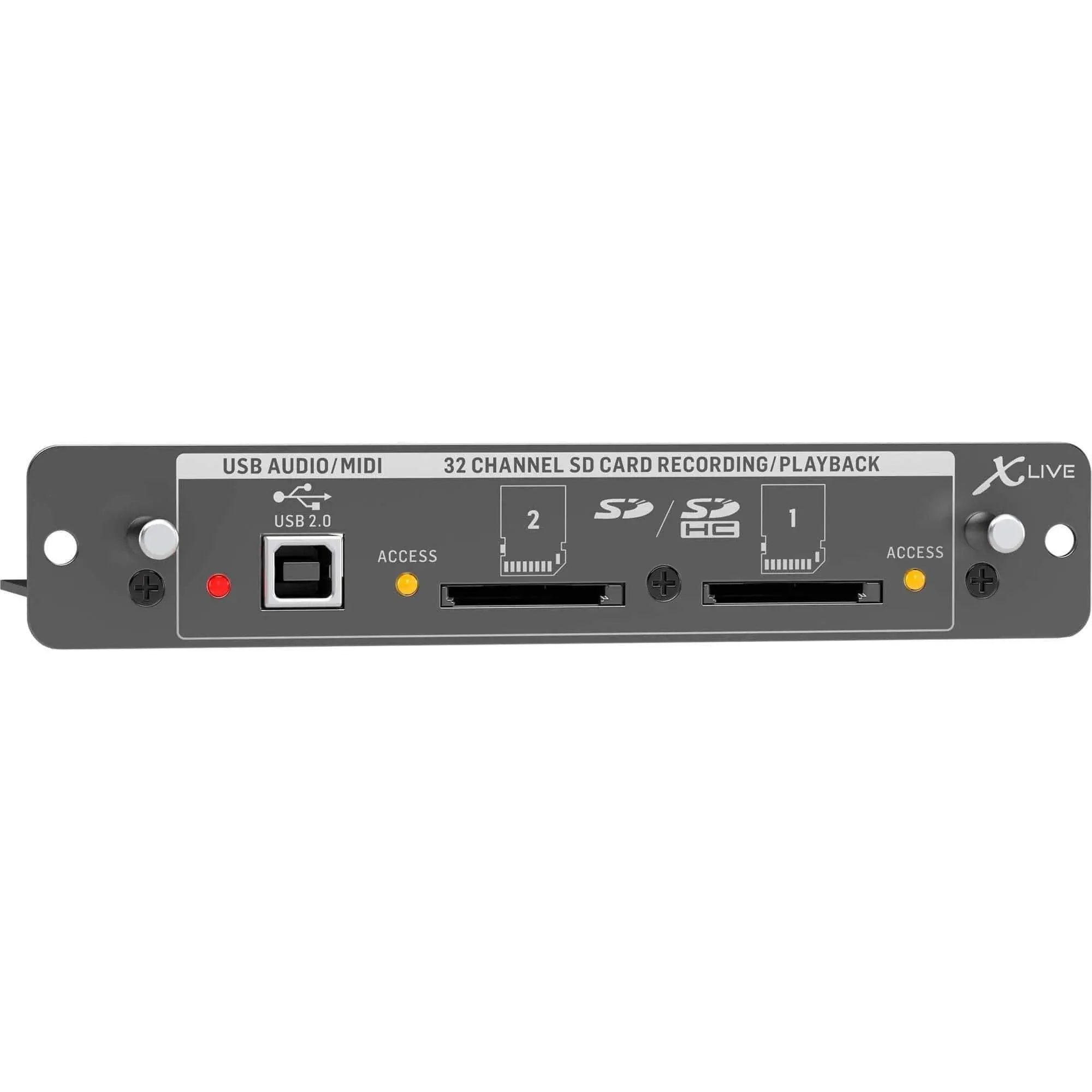

The X-LIVE interface card expands on the already stellar performance of the X-USB card that has been standard in X32 consoles for years. The same 32-channel bi-directional audio I/O via USB 2.0 is available, providing 32 channels for recording and playback, plus remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots provides independent recording and playback of up to 32 channels of uncompressed WAV files inconsistent sessions up to the maximum capacity of the SD cards. Multi-channel recording without a laptop, as well as virtual sound checks, live backing-track support, accurate marker handling and manipulation, and full remote operation from PC, Android* or iPad* apps and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what X-LIVE can bring to your X32.

  Features

• 32-channel live recording and playback on dual SD/SDHC cards

• Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files

• 32-channel, bi-directional USB 2.0 audio/MIDI interface for studio and live recording

• Independent operation of SD cards and USB recording / playback

• Remote control via PC, Android or iPad apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH

• Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time

• Unique sample-synchronized automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop

• Instantaneous live playback with preload and markers in the console UI and remote apps

• Markers can be set on the fly for identifying song positions while recording or playing back

• All markers can be edited directly in the console GUI

• Allows employing PC "Plug Ins" for outboard effects processing via USB

• Channel routing can be stored and automated for record/playback

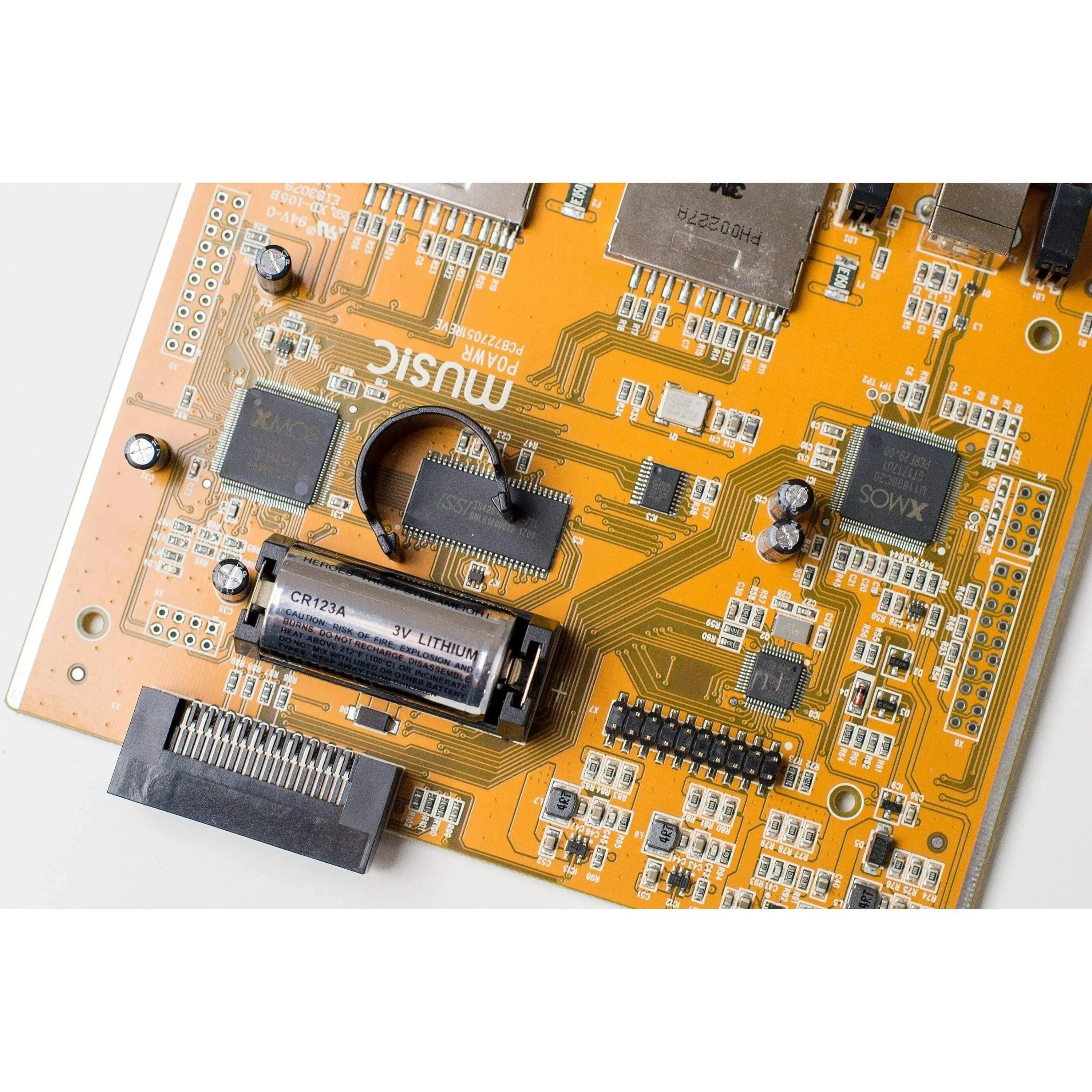

• Secure file handling in the event of power blackout (optional CR123A Lithium cell required)

• HUI/Mackie Control emulation for controlling of any compatible DAW software from the console surface

• Compatible with CoreAudio on Mac OSX- ultra-low latency ASIO drivers for Windows PC available
